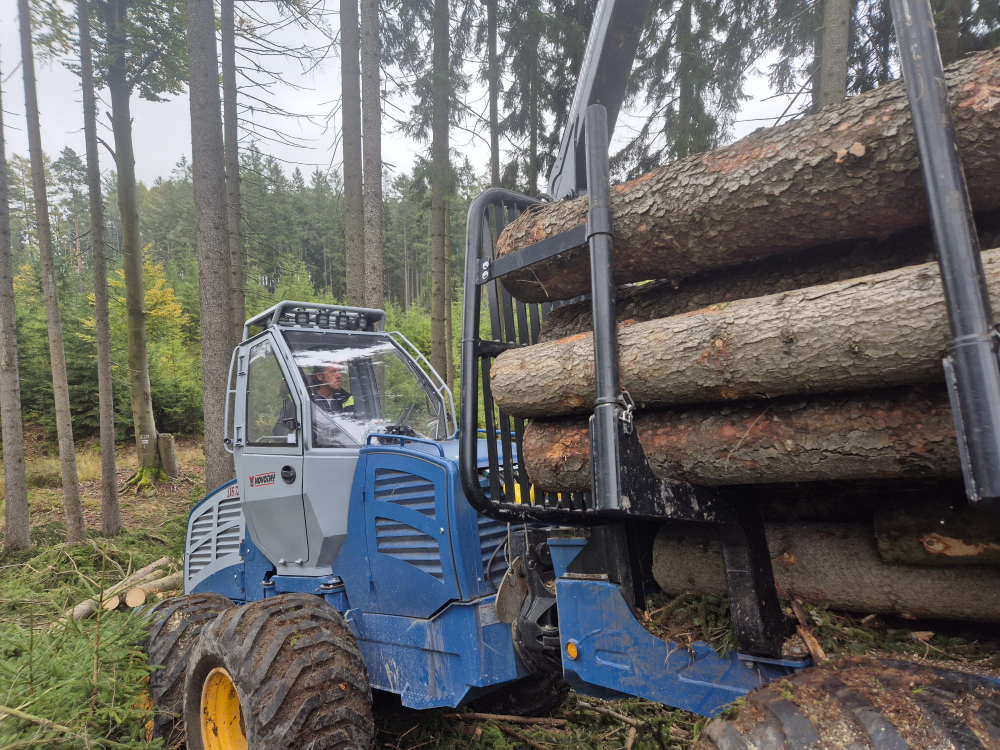

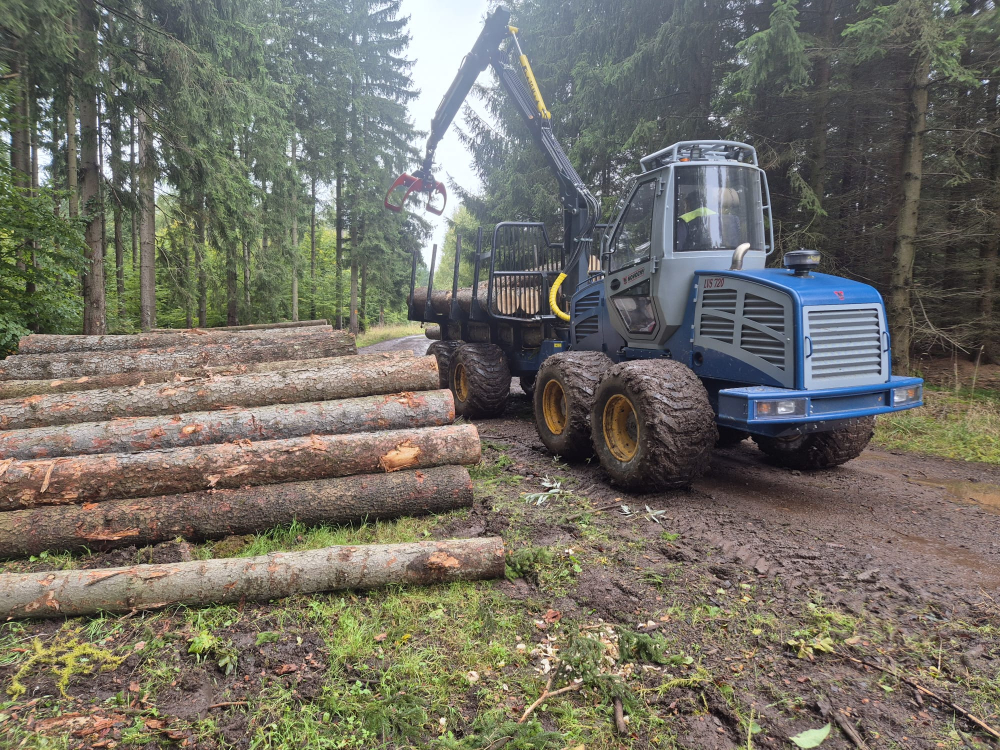

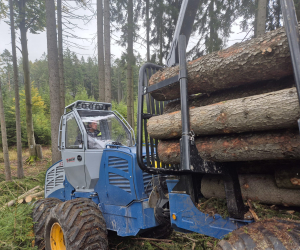

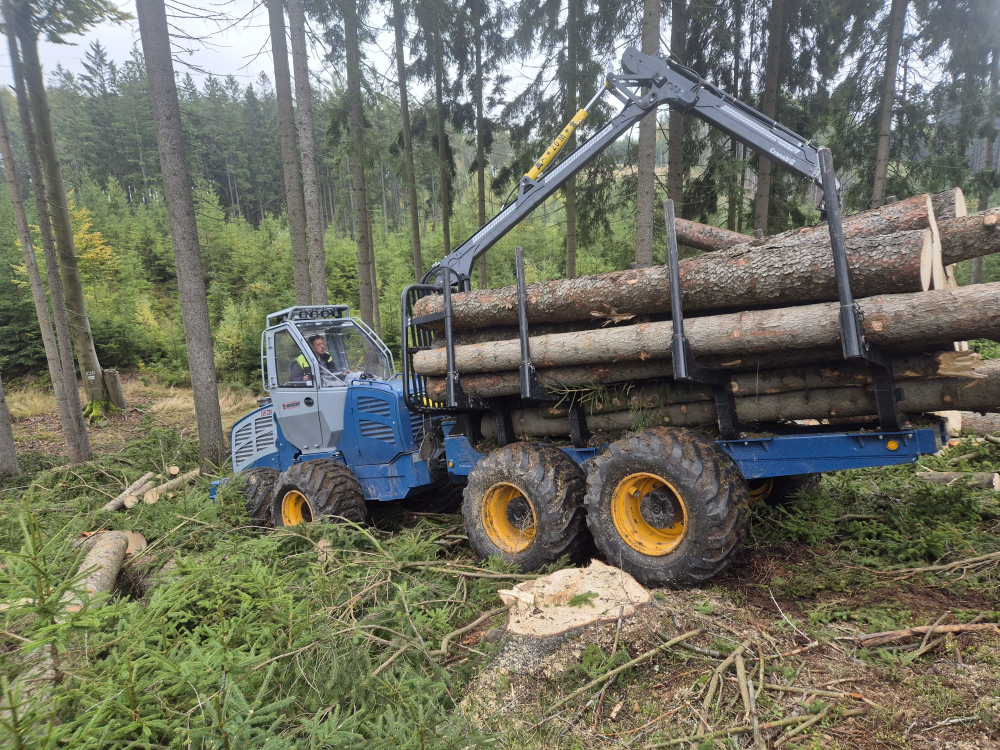

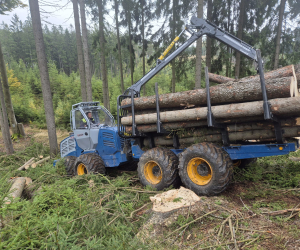

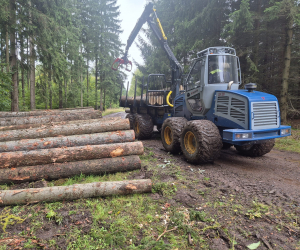

Forwarder Novotný LVS 720

The LVS 720 forwarder is a machine for thicker thinning, universally usable in forest stands of higher age classes. You can hardly feed this forwarder with timber after manual harvesting. The forwarder is an excellent partner for medium-sized harvesters, with a minimum daily output of around 100 m3.

The huge advantage is the ratio of power, size, weight of the machine and its load capacity. It has great utility parameters. The machine is very flexible, and with its low weight and wide 600 mm standard tyres (710 mm optional), it causes very little damage to the soil.

Again, we use components for the LVS 720 from the best suppliers that you can rely on. The Perkins internal combustion engine meets the latest Stage 5 emissions standard, and provides the forwarder with convenient power with plenty of reserve. We use Danfoss hydraulics which, with the Plus1 control system, give the balancer sufficient power on any terrain. The standard variant uses a Cranab FC53 hydraulic arm with double extension and a reach of 8.5 metres. The transmission is made by NAF, a proven supplier, and the mechanical locking of all 8 wheels is a matter of course in this category. The LVS 720 forwarder has a load capacity of 7.5 tonnes. The forwarder has still very acceptable dimensions – width only 2.4 m on 600 m tires, height around 3 metres, and the loading area can take 2 to 5 metres long logs. The LVS 720 has the same comfortable and spacious cabin as the LVS 520 and is also rotatable by 180°.

If you have a medium-sized harvester and don’t want an unnecessarily large forwarder behind you, the LVS 720 is a great choice.

ADVANTAGES OF THE LVS 720 FORWARDER
 Reliable and powerful engine 134 hp/2200 rpm
 Mechanical differentials with 100% locking by NAF
 All 8-wheel drive
 High pulling force of 120 kN
 Cranab hydraulic crane with a reach of 8.5 metres
 Turnable cabin
 7,500 kg load capacity

Technical parameters:
